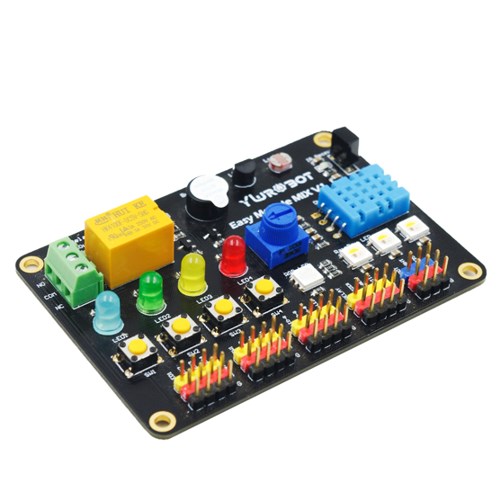

Easy Module MIX Shield -Arduino Compatible


Overview

Easy Module MIX Shield is a beautiful and convenient module for Arduino starter to do some basic experiment. This shield integrate various module functions and you can directly program to complete the experiment without welding and cables.

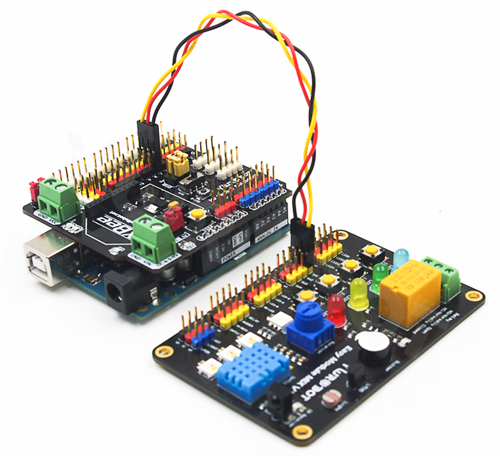

This shield can be fully compatible with the Arduino UNO R3 and adopt custom row needle, it will never short circuit with the Arduino UNO USB interface, so this shield is very safe.

We will test all of the modules before we ship them out and we also supply all of the module test code library files, so it means that you can use it directly after you get this shield from our online store, what you need to do is just enjoy this wonderful shield.

Technical Parameter

Model: Easy Module MIX Shield V1

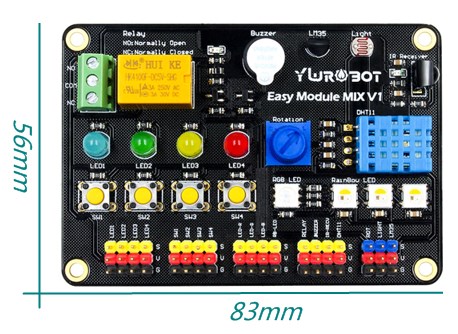

Size: 83*56 mm

Platform: the Arduino

Input Voltage: 5V

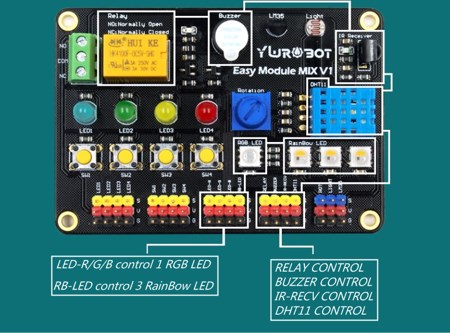

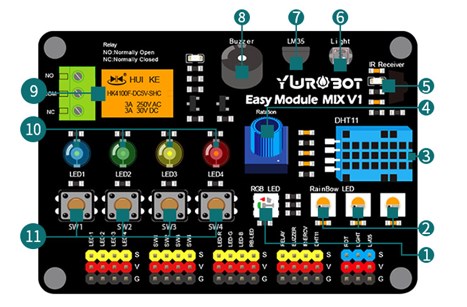

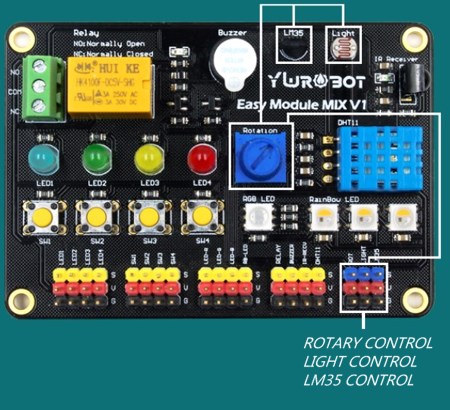

1、RGB-LED Module    2、RainBow LED                 3、DHT11 Sensor
4、Ratation Sensor       5、38khz IR Recceiver        6、Light Sensor
7、LM35 Sensor            8、Buzzer                            9、Relay Module

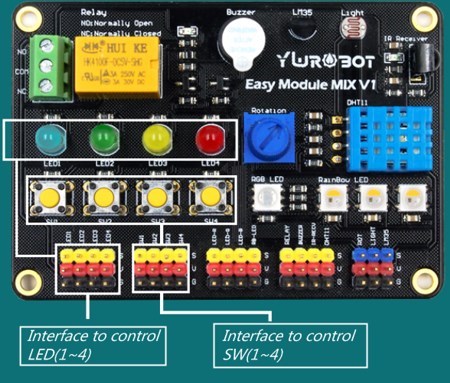

10、LED 1~4                 11、Switch 1~4
